Three Waves Highway Guardrail Roll Forming Machine 15T

Name: Three Waves Highway Guardrail Roll Forming Machine 15T
Brand: Gracias
Price: 1 USD

Quality Three Waves Highway Guardrail Roll Forming Machine 15T wholesale

Brand Name : Gracias

Model Number : Highway guardrail

Certification : CE

Place of Origin : China

MOQ : 1set

Price : As discussion

Payment Terms : T/T, L/C

Supply Ability : 15sets per month

Delivery Time : 45-60 work days

Packaging Details : Standard export package

Warranty : one year

Weight : 15 T

Voltage : 380V 50Hz 3phases

Condition : New

Color : Customers Requirement

Use : Highway guardrail steel sheet

Contact Now

Three Waves Highway Guardrail Roll Forming Machine 15T

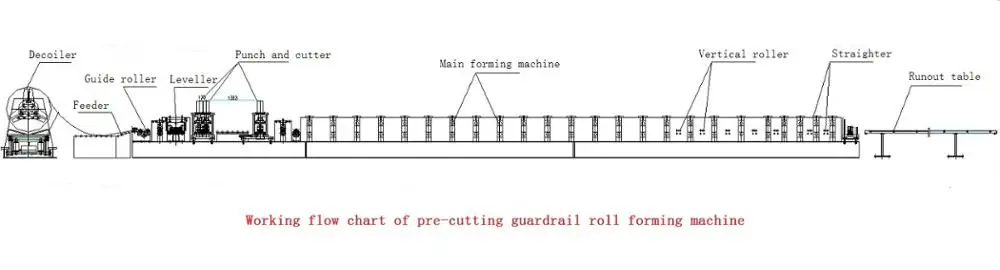

1. manual uncoiler--2. hydraulic punching-- 3. roll forming machine-- 4. PLC control box--

5. hydraulic system-- 6. post cut-- 7.output table

Three Waves Highway Guardrail Roll Forming Machine 15T

MACHINE LIST--WHOLE LINE
No.	Item	Unit	Qty
1.	15T Manual decoiler	set	1
2.	Leveling device	set	1
3.	Punching system	pcs	1
4.	Main forming machine	set	1
5.	PLC Control box	set	1
6.	Hydraulic pump	set	1
7.	Cutting system	pcs	1
8.	Manual stacker	pcs	1

Components of highway guardrail roll forming machine

5T manual decoiler	1.	Material coil inner diameter	450mm-550mm
	2.	Max coil Width	550mm
	3.	Loading capacity	15T
	4.	Expand and shrink	Manual
	5.	Framework	Welded by middle plate

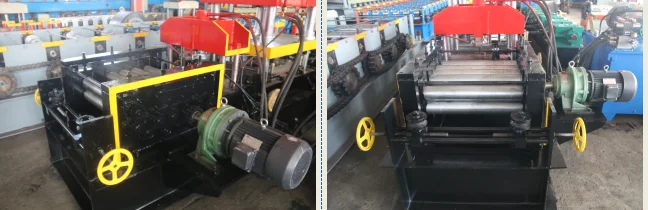

Leveling device

Leveling shafts

Up 5 down 6 steps

Shaft diameter

80mm

Motor power

5.5kw

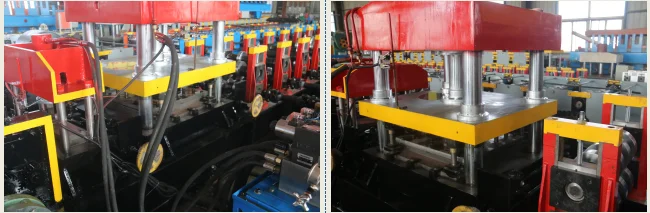

Punching system	1.	Punch mode	Four pillar hydraulic powered punching system
	2.	Mold material	Cr12
	3.	Work table size	600*600mm
	4.	Press power	160T

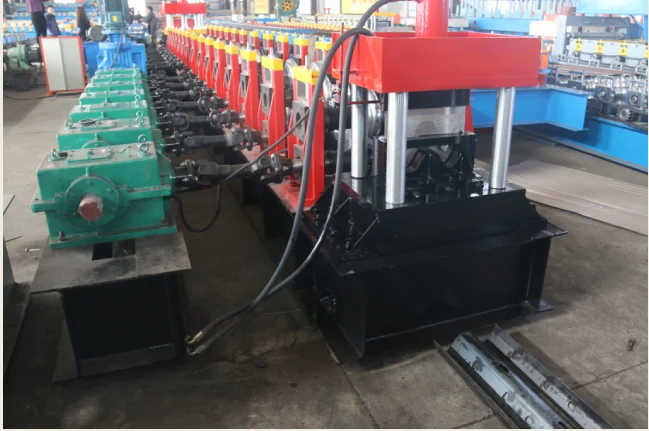

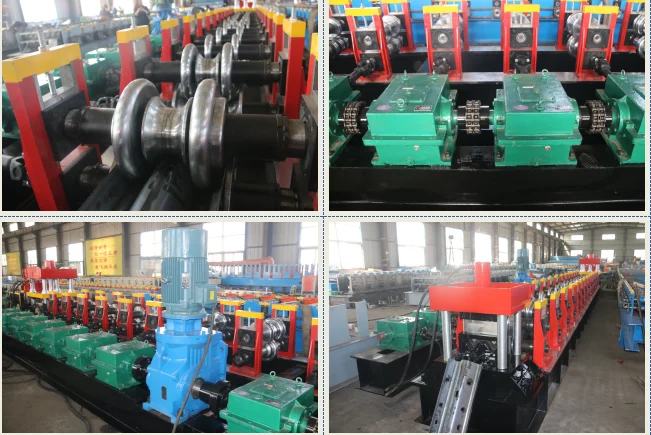

Main machine	1.	Machine body frame	Cast iron vertical structure
	2.	Machine base	350# steel welded
	3.	Number of forming steps	13 steps
	4.	Roller material	Cr15 steel with heat treatment HRC45-52
	5.	Shaft	45#steel ,diameter 90mm
	6.	Bearing	Chinese famous brand Harbin
	7.	Safety cover	Available
	8.	Transmission style	Gearbox drive
	9.	Main motor	22kw
	10.	Technological process	Forging→Rough turning→Quenching→Grinding →Finish turning →Electroplating chromium →Finish

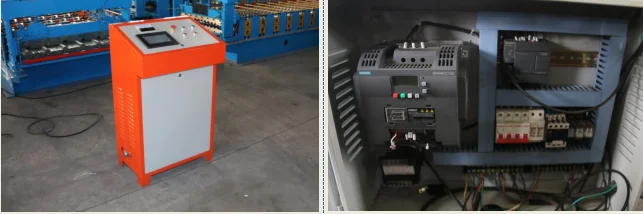

Electric control parts	1.	PLC	Delta
	2.	Frequency converter	Schneider
	3.	Operate manual	5.7 inch touch screen
	4.	Counter	Chint
	5.	Reducer	Delta

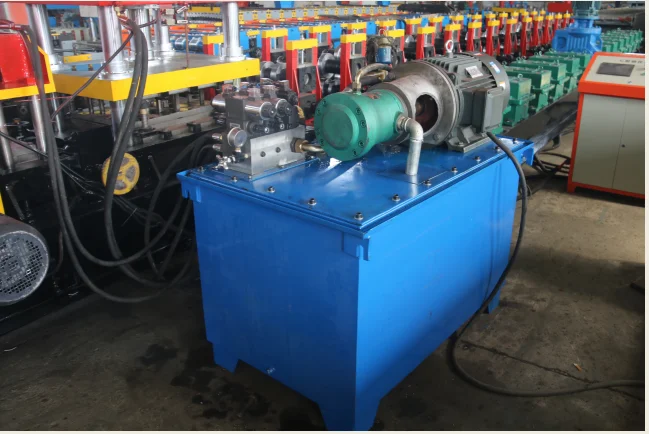

Hydraulic parts	1.	Pump power	18.5kw
	2.	Electromagnetism valves	4
	3.	Hydraulic pipes	4
	4.	Pressure guage	1

Cutting parts

Cutting mode

Hydraulic tracking cut

Blade

Cr12 Mov with heat treatment HRC58-62℃

Cutting length tolerance

±1mm

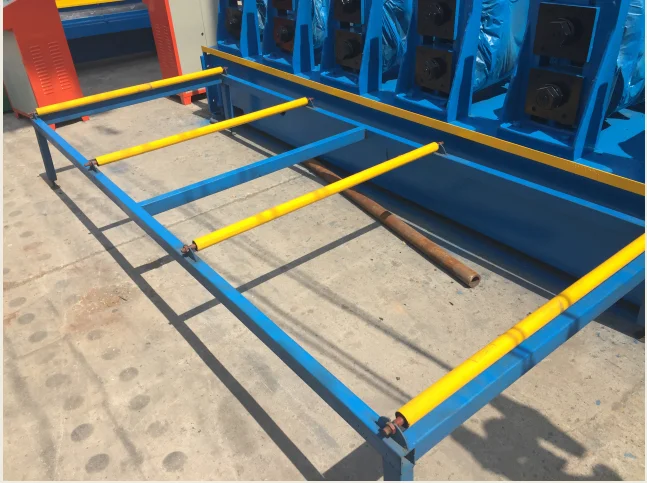

3m manual stacker

Size

3000*1200*500mm

Height

Adjustable

Running roller

4 steps

Three Waves Highway Guardrail Roll Forming Machine 15T
