ISO Standing Seam Roll Forming Machine 18m/min For Shutter Doors
The finished product of Steel Door Frame Roll Forming Machine is widely used
in the construction of various industrial plants, villages, warehouses, supermarkets,
hotels, exhibition, family construction, shopping malls shutter doors and etc. It has
the advantage of beautiful, classical appearance and grace taste.
Drawings of galvanized steel door frame for reference:
Suitable material for door frame machine?
Processing material: colored steel plate, galvanized plate, or aluminium plate
Material thickness: 0.8---1.5mm
Material hardness: 550 mpa---350 mpa
Material width: according to the drawing
Formed width: according to the drawing
Forming speed:10-18m/min

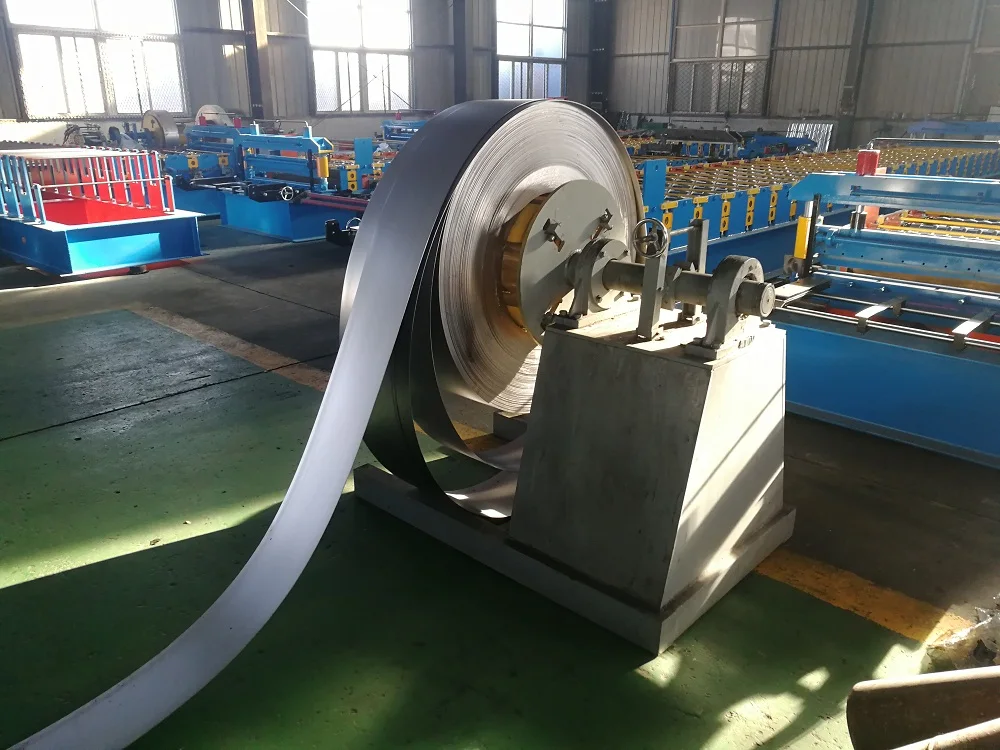

Uncoiler System for door frame roll forming machine?
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:5T
Uncoiling width:550mm
Inner diameter: 450-550mm
Main roll forming system of door frame roll forming machine?
Feature : Ensure stability , precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded
sheet structure, motor reducer drive, chain transmission,
roller surfaces polishing, hard plating,heat treatment and galvanized treatment .
The polished surface and the heat treatment towards the molds also can keep
the molding plate surface smooth and not easy to be marked when it is being stamped.
Roller fixer : Guide column
Frame : 400 H steel
Drive mode: gearbox
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel with tempering
Diameter of shafts: φ80mm
Number of rollers : 16 rollers
Main power: 5.5kw(cycloidal planetary gear speed reducer)
Hydraulic power : 4kw
And for the punching of door frame like jamb, lock and connection part also provided.
